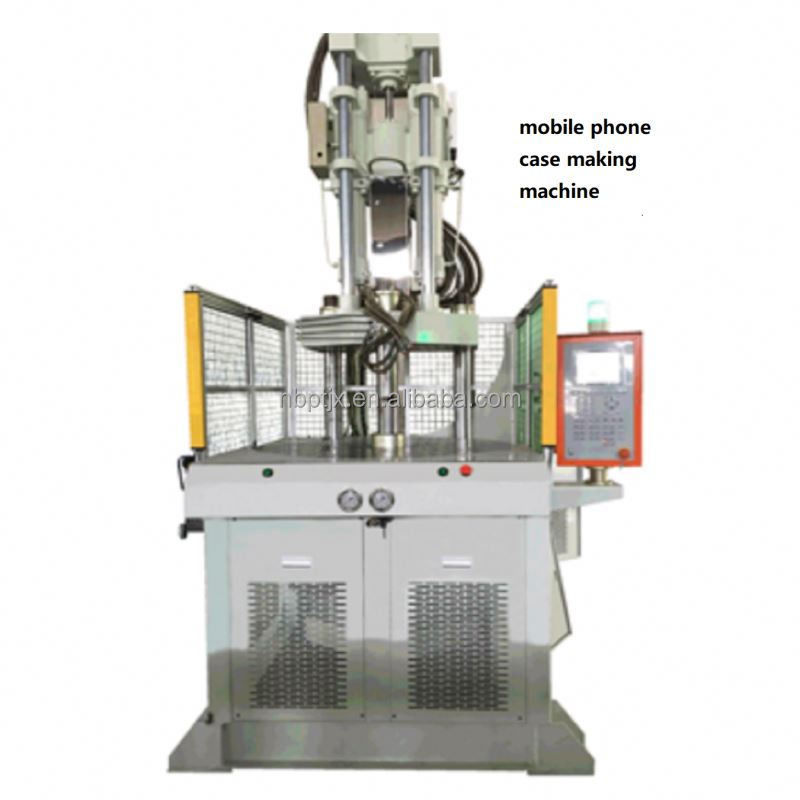

VERTICAL Vertical Injection Molding Machine Mobile Phone Case Making Machine
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | NING BO PENG TAI |
| Certification: | CE ISO9001 |
| Model Number: | PT-450DM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | mobile phone case making machine Wooden case packing, fumigation treatment |
| Supply Ability: | 600 Set/Sets per Month mobile phone case making machine |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 450KN | Type: | Tube Head Injection |
| Place Of Origin: | Zhejiang, China | Model Number: | PT-450DM |
| Brand Name: | NING BO PENG TAI | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Plastic Type: | Thermoplastic | Power: | 7.5KW |
| Injection Rate: | 36cm3/sec-71cm3/sec | Automatic: | Yes |
| Certification: | CE ISO9001 | Opening Stroke: | 200mm |
| Injection Weight: | 54g-105g | Screw Diameter: | 25-35mm |
| Screw Stroke: | 120mm | Screw Speed Max: | 0-190rpm |
| Injection Pressure: | 2509kg/cm2-1280kg/cm2 | Investment Size: | 390*430mm |
| Machine Dimension(L*W*H): | 2.35m*1.1m*2.2m | Platen Size: | 580*430mm |
| Machine Weight: | 1.7T | Keyword: | Mobile Phone Case Making Machine |
| Warranty: | 1 Year | ||
Product Description
Characteristic:
Double mode alternation operation,high work efficiency and high operation safety.
It adopts the specific pressure ratio flow control , convenient debugging ,and also adopts the system closed loop control ,so that the machine control is more accurate,and the injection products are more precise.
