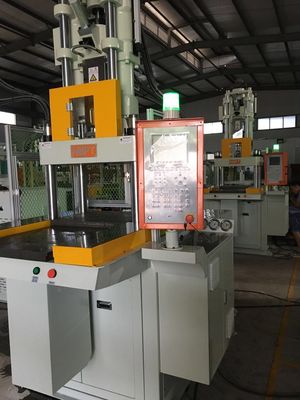

VERTICAL Vertical Injection Molding Machine Golf Special Molding Machine
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | NING BO PENG TAI |
| Certification: | CE ISO9001 |
| Model Number: | PR-1650 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden case packing, fumigation treatment |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 1650KN | Type: | Tube Head Injection |
| Place Of Origin: | Zhejiang, China | Model Number: | PR-1650 |
| Brand Name: | NING BO PENG TAI | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Plastic Type: | Thermoplastic | Power: | 18.8KW |
| Injection Rate: | 127cm3/sec-181cm3/sec | Automatic: | Yes |
| Certification: | CE ISO9001 | Opening Stroke: | 350mm |
| Injection Weight: | 463g-658g | Screw Diameter: | 52-62mm |
| Screw Stroke: | 240mm | Screw Speed Max: | 0-142rpm |
| Injection Pressure: | 2486kg/cm2-1748kg/cm2 | Investment Size: | 1280*450mm |
| Machine Dimension(L*W*H): | 4.7m*2.3m*3.6m | Platen Size: | 1430*480mm |
| Machine Weight: | 12T | Keyword: | Injection Moulding Machine |
| Warranty: | 1 Year | ||
Product Description
Characteristic:

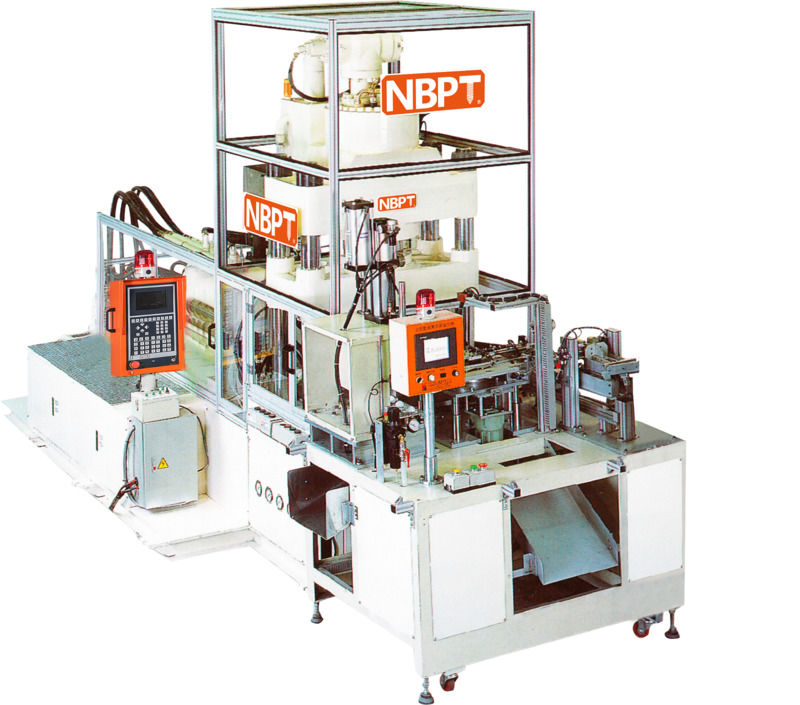

By PR-150D production models,with the plug-in,fully automatic turret golf special forming machine.
Full bell shaped zone,air cooling and humidity,molding conditions are rigorous and reliable.
Under synchronous neutron back heart center is 100% degrees,with top off function.
It is characterized by excellent quality,such as cavity evacuation,high pressure blowing,program control and whole process monitoring.
Separate turret,by indepengent PLC wiring,manual molding machine can also be upgraded it is a fully automatic building.
Automatic ball feeding,remove the product,cut off the head of one.
