PT-450 7.5KW 1.5T Thermoplastic VERTICAL Air Filter Machine Automatic
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | NING BO PENG TAI |
| Certification: | CE ISO9001 |
| Model Number: | PT-450 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | air filter automatic machine manufacturers for injection molding machineWooden case packing, fumigation treatment |
| Supply Ability: | 300 Set/Sets per Month air filter automatic machine manufacturers |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 450KN | Type: | Tube Head Injection |
| Place Of Origin: | Zhejiang, China | Brand Name: | NING BO PENG TAI |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Plastic Type: | Thermoplastic |
| Power: | 7.5KW | Injection Rate: | 36cm3/sec-71cm3/sec |
| Automatic: | Yes | Certification: | CE ISO9001 |
| Opening Stroke: | 200mm | Injection Weight: | 54g-105g |
| Screw Diameter: | 25-35mm | Screw Stroke: | 120mm |
| Screw Speed Max: | 0-205rpm | Investment Size: | 390*430mm |
| Machine Dimension(L*W*H): | 2.35m*1.1m*2.2m | Platen Size: | 580*430mm |
| Machine Weight: | 1.5T | Keyword: | Air Filter Automatic Machine Manufacturers |
| Warranty: | 1 Year | Model Number: | PT-450 |
Product Description

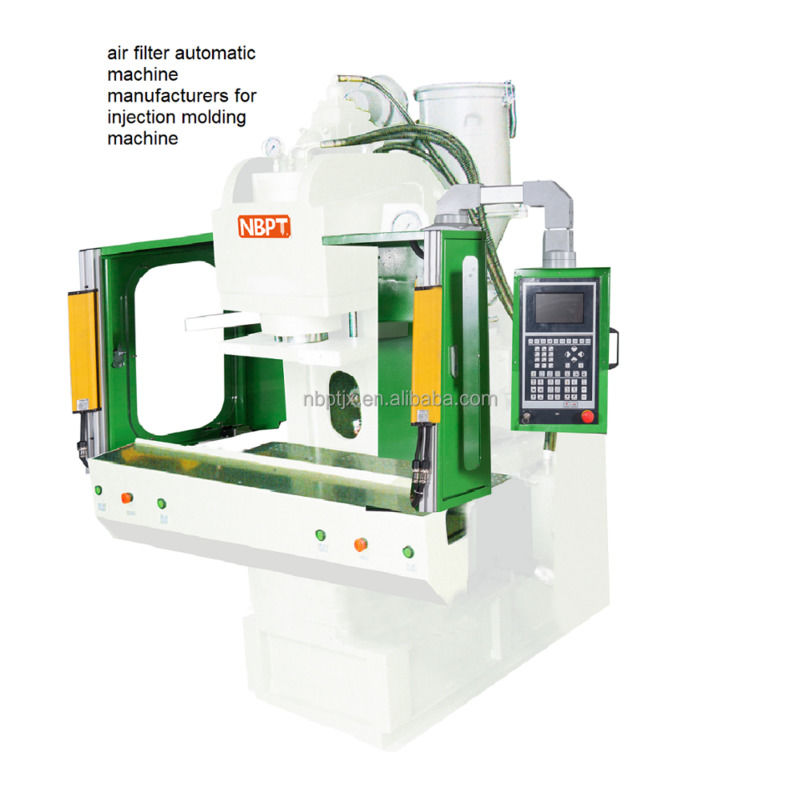

air filter automatic machine manufacturers for injection molding machine
Characteristic:
Injection can be divided into fast and slow injection , injection pressur of three stroke control ,
time control, can be adjusted, convenient and accuracy.
The lower mould is fixed , the upper die is closed , the sealing is good for the inserted articles ,
and the finished product is pushed out.
Low pressure die closing device protects die and prolongs die life.
Compute control , with Hao screen, simple operation, convenient and intuitive.
The heating plate can be added according to the requirement.
