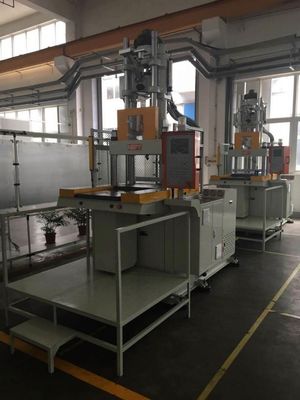

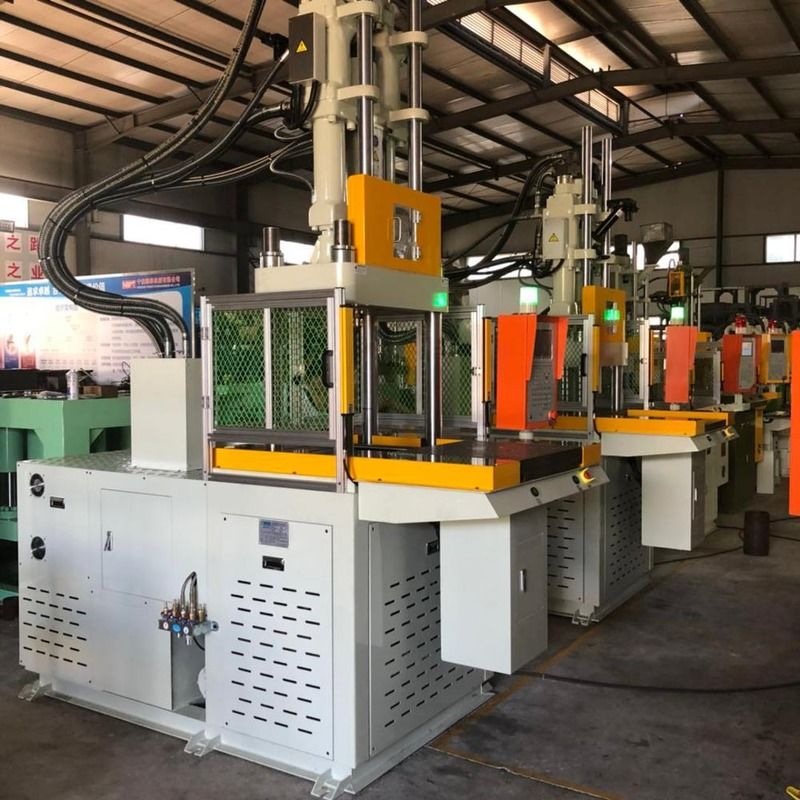

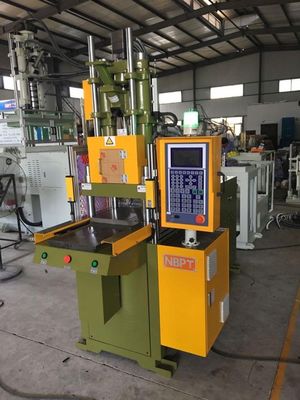

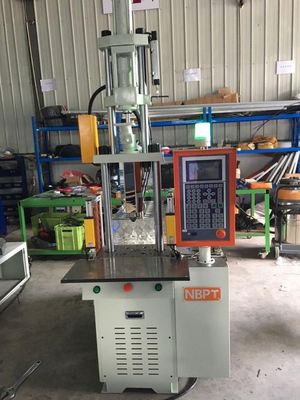

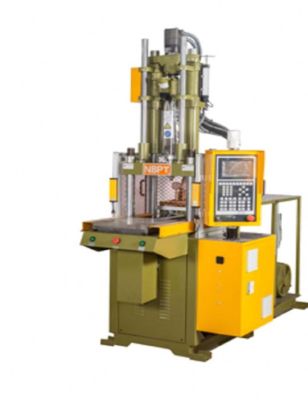

VERTICAL Single Slide Table Vertical Air Filter Plastic Injection Molding Machine 45T
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | NING BO PENG TAI |
| Certification: | CE ISO9001 |
| Model Number: | PT-450D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | slide table vertical injection molding machine Wooden case packing, fumigation treatment |
| Supply Ability: | 600 Set/Sets per Month slide table vertical injection molding machine |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 450KN | Type: | Tube Head Injection |
| Place Of Origin: | Zhejiang, China | Brand Name: | NING BO PENG TAI |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Plastic Type: | Thermoplastic |
| Power: | 7.5KW | Injection Rate: | 36cm3/sec-71cm3/sec |
| Automatic: | Yes | Certification: | CE ISO9001 |
| Opening Stroke: | 200mm | Injection Weight: | 54g-105g |
| Screw Diameter: | 25-35mm | Screw Stroke: | 120mm |
| Screw Speed Max: | 0-190rpm | Investment Size: | 390*430mm |
| Machine Dimension(L*W*H): | 2.35m*1.1m*2.2m | Platen Size: | 580*430mm |
| Machine Weight: | 1.6T | Keyword: | Slide Table Vertical Injection Molding Machine |
| Warranty: | 1 Year | Model Number: | PT-450D |
Product Description
Characteristic:
A variety of precision control systems are available , with an elastic combination of reduced cost and finished product accuracy requirements.
Double skateboard type can set the function of single skateboard , the mould can match the elasticity of production capacity.
There are 2 stations , 3 stations and 4 stations in the disk type depending on the amount or degree of difficulty of the embedded work.
