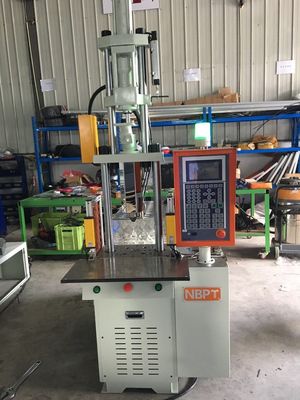

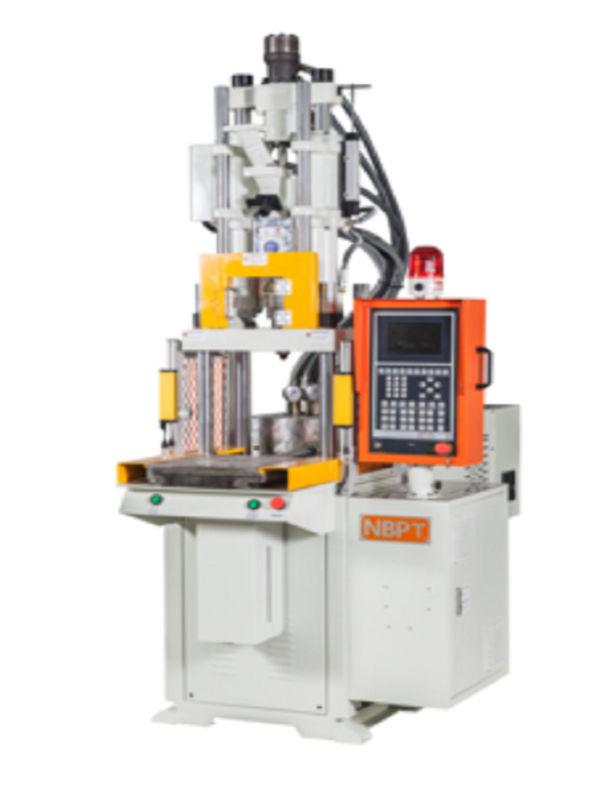

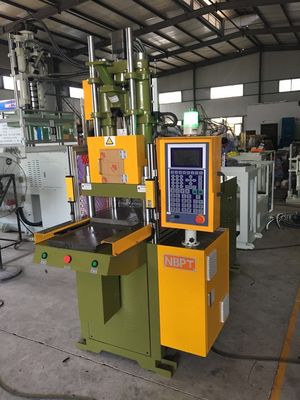

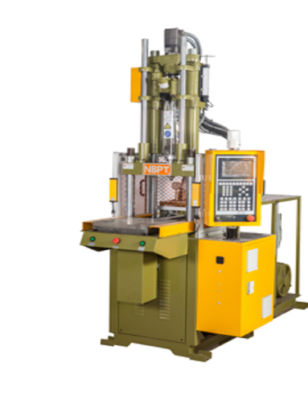

PT-450D VERTICALE Vertical Sliding Table Plastic Injection Machine
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | NING BO PENG TAI |
| Certification: | CE ISO9001 |
| Model Number: | PT-450D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden case packing, fumigation treatment |
| Supply Ability: | 600 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 450KN | Type: | Tube Head Injection |
| Place Of Origin: | Zhejiang, China | Model Number: | PT-450D |
| Brand Name: | NING BO PENG TAI | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Plastic Type: | Thermoplastic | Power: | 7.5KW |
| Injection Rate: | 36cm3/sec-71cm3/sec | Automatic: | Yes |
| Certification: | CE ISO9001 | Opening Stroke: | 200mm |
| Injection Weight: | 54g-105g | Screw Diameter: | 25-35mm |
| Screw Stroke: | 120mm | Screw Speed Max: | 0-190rpm |
| Injection Pressure: | 2509kg/cm2-1280kg/cm2 | Investment Size: | 390*430mm |
| Machine Dimension(L*W*H): | 2.35m*1.1m*2.2m | Platen Size: | 580*430mm |
| Machine Weight: | 1.6T | Keyword: | Slide Table Injection Moulding Machine |
| Warranty: | 1 Year | ||
Product Description
Characteristic:
A variety of precision control systems are available , with an elastic combination of reduced cost and finished product accuracy requirements.
Double skateboard type can set the function of single skateboard , the mould can match the elasticity of production capacity.
There are 2 stations , 3 stations and 4 stations in the disk type depending on the amount or degree of difficulty of the embedded work.
