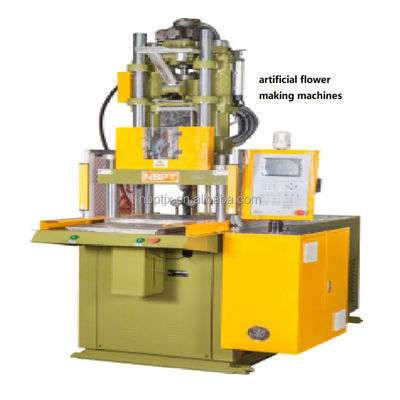

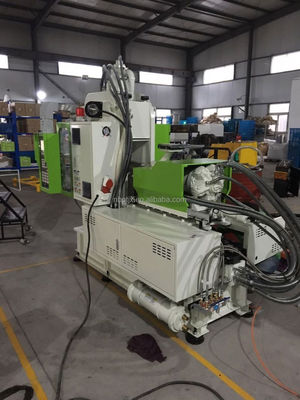

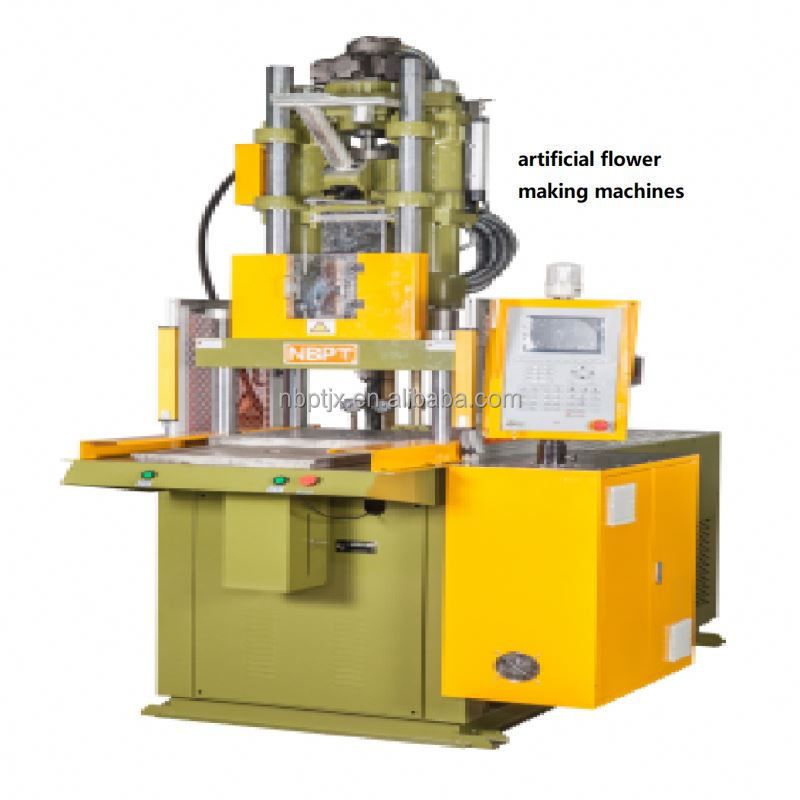

VERTICAL vertical injection molding machineinjection cap making machine
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | NING BO PENG TAI |
| Certification: | CE ISO9001 |
| Model Number: | PT-750DM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | $key$ Wooden case packing, fumigation treatment |
| Supply Ability: | 600 Set/Sets per Month $key$ |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 750KN | Type: | Tube Head Injection |
| Place Of Origin: | Zhejiang, China | Model Number: | PT-750DM |
| Brand Name: | NING BO PENG TAI | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Plastic Type: | Thermoplastic | Power: | 11KW |
| Injection Rate: | 51cm3/sec-90cm3/sec | Automatic: | Yes |
| Certification: | CE ISO9001 | Opening Stroke: | 200mm |
| Injection Weight: | 90g-160g | Screw Diameter: | 30-40mm |
| Screw Stroke: | 140mm | Screw Speed Max: | 0-175rpm |
| Injection Pressure: | 2170kg/cm2-1220kg/cm2 | Investment Size: | 490*490mm |
| Machine Dimension(L*W*H): | 2.4m*1.3m*2.65m | Platen Size: | 650*490mm |
| Machine Weight: | 3.3T | Keyword: | $key$ |
| Warranty: | 1 Year | ||
Product Description
Characteristic:
Double mode alternation operation,high work efficiency and high operation safety.
It adopts the specific pressure ratio flow control , convenient debugging ,and also adopts the system closed loop control ,so that the machine control is more accurate,and the injection products are more precise.
