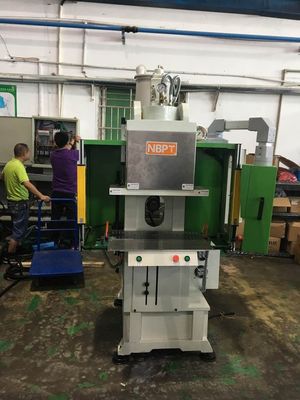

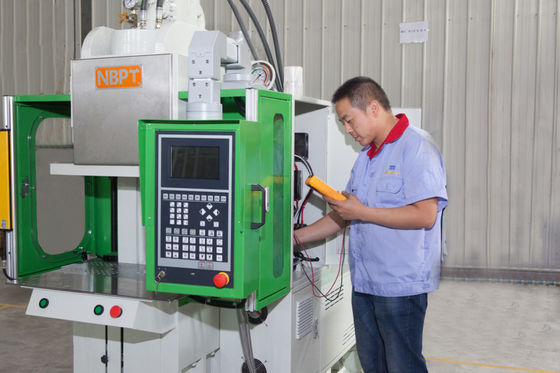

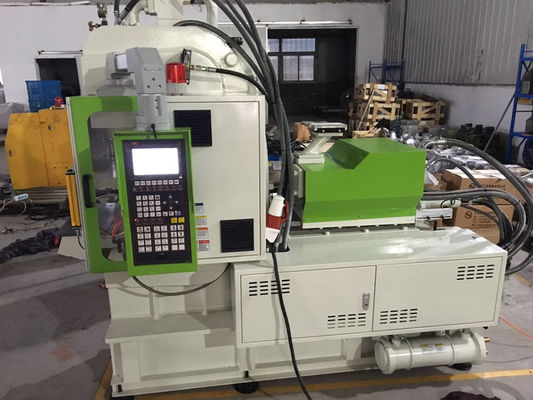

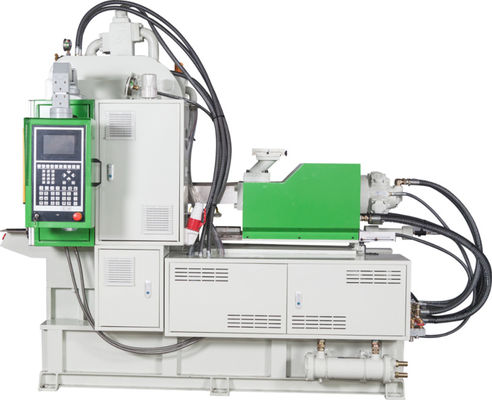

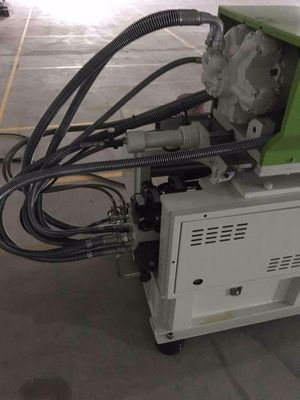

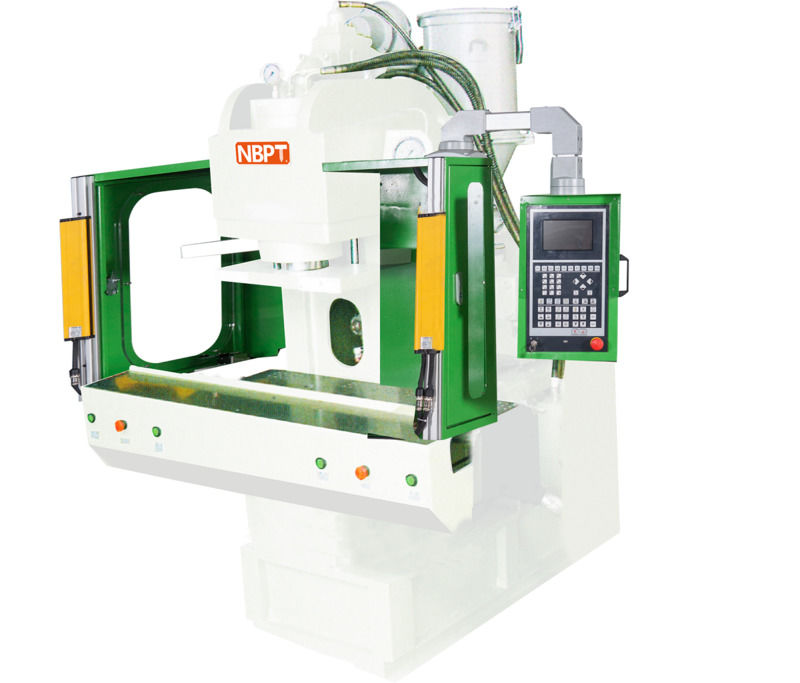

Injection Molding Machine VERTICAL C With Double Slide Plate With Best Price Machine
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | NING BO PENG TAI |
| Certification: | CE ISO9001 |
| Model Number: | PC-450DM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden case packing, fumigation treatment |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 450KN | Type: | Tube Head Injection |
| Place Of Origin: | Zhejiang, China | Model Number: | PC-450DM |
| Brand Name: | NING BO PENG TAI | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Plastic Type: | Thermoplastic | Power: | 7.5KW |
| Injection Rate: | 48cm3/sec-95cm3/sec | Automatic: | Yes |
| Certification: | CE ISO9001 | Opening Stroke: | 270mm |
| Injection Weight: | 103g-250g | Screw Diameter: | 32-50mm |
| Screw Stroke: | 140mm | Screw Speed Max: | 0-175rpm |
| Injection Pressure: | 2050kg/cm2 -930kg/cm2 | Station Clearance: | (+-)0.02 |
| Machine Dimension(L*W*H): | 2.8m*1.05m*2.05m | Platen Size: | 700*280mm |
| Machine Weight: | 3.5T | Keyword: | Injection Moulding Machine |
| Warranty: | 1 Year | ||
Product Description
Characteristic:
Vertical mold locking. horizontal injection ,inorganic column design,three sides open space ,suitable for injection molding of medium-sized embedded parts.
The utility model has the advantages of convenient lifting and moving , and convenient and rapid lifting of the die.
C type steel structure is integrally formed with less deformation at high tension moment.
Direct pressure mode locking , double cylinder injection system , good accuracy and long service life.
It can match the requirement of embedded parts , choose slide plate or turntable type to improve production efficiency.
Can be equipped with microcomputer control system or computer control system , both low price , high precision dual advantages!
